If you’re into analog-style plugins — tape machines, consoles, vintage EQs, and tube compressors — you know it’s not enough to just slap them on a track. What really makes them shine is how you feed the signal into them.
Most of these plugins are designed to emulate the behavior of real analog hardware, which means they perform best when operating in a specific input range, often referred to as the “sweet spot.”

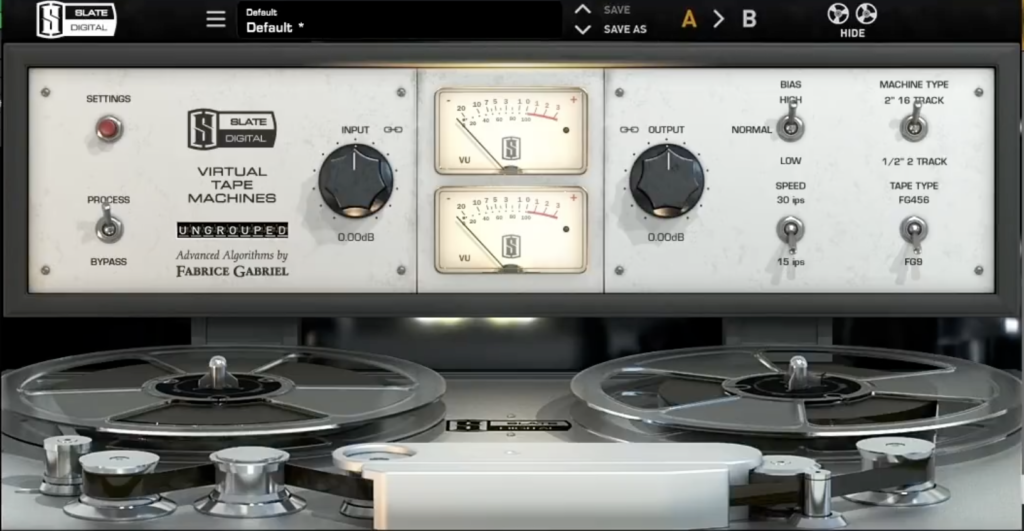

In this article, we’ll walk through a step-by-step gain staging method using Virtual Tape Machine (a console/tape-style plugin) and two instances of dpMeter, so you can get the most musical and authentic sound possible from your analog emulations.
🎯 What is the Sweet Spot?
The sweet spot is the optimal signal level where analog-modeled plugins respond like the original hardware — delivering rich harmonics, gentle saturation, and natural compression. For Slate Digital ( Virtual Tape Machines), the manual states the ideal input is around 0 dB VU, which typically translates to -18 dBFS RMS in the digital world.
⚙️ How to Gain Stage Using Two dpMeter Instances
🔁 Step 1: Bracket Your Vintage Plugin
Insert two instances of dpMeter:
- One before the analog plugin (to measure and set input levels).
- One after the analog plugin (to monitor output and fine-tune levels).
🧪 Step 2: Measure Integrated LUFS (Before the Plugin)

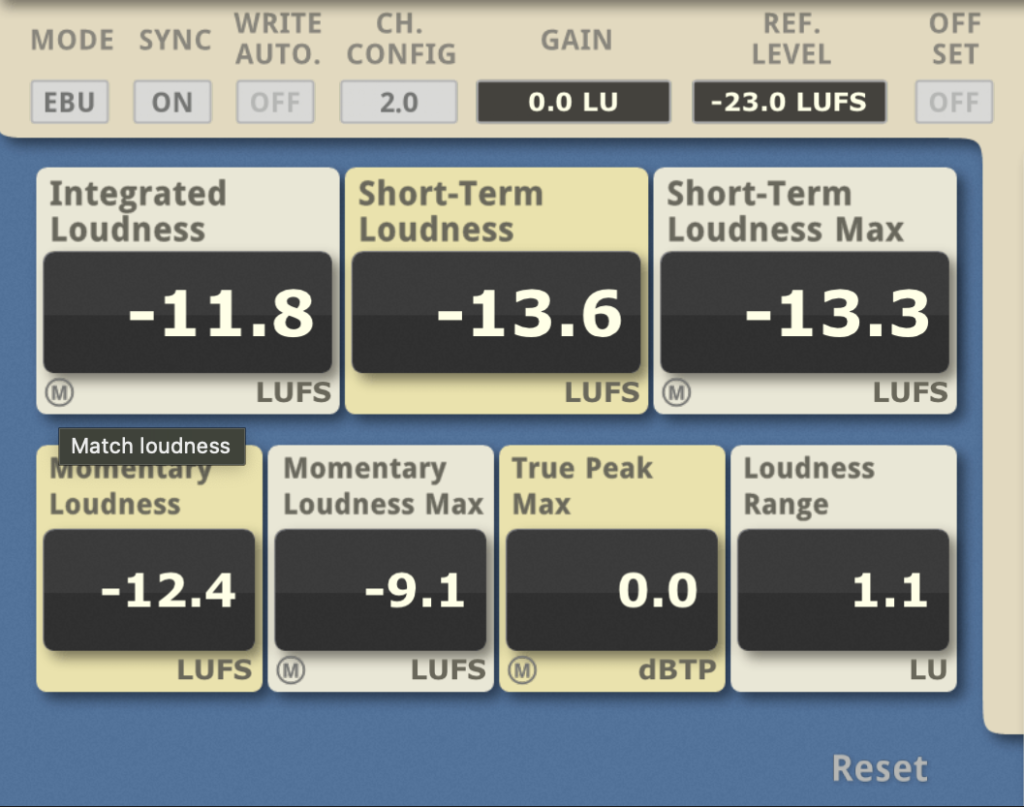

- In the first dpMeter, set it to EBU mode.
- Measure the signal going into the vintage plugin.
- Take note of that value (e.g., -11.8 LUFS).
- Set this value as the REF. LEVEL in the second dpMeter (after the plugin).
🔁 Step 3: Switch to RMS Mode
- On the first dpMeter, switch to RMS mode.
- Set the REF. LEVEL to the plugin’s sweet spot — for Slate digital VTM, that’s typically -18 dBFS RMS.
🎯 Step 4: Match to Sweet Spot
- Measure the signal.
- Click the M button to automatically set your RMS or Peak level to match the sweet spot.
🧮 Step 5: Monitor Output Levels (After the Plugin)
- Go to the second dpMeter.
- Still in LUFS (EBU) mode, click the M button to match the reference you set earlier.
- This helps ensure consistent output, even after tape saturation or analog compression.
🔧 Step 6: Fine Tune Output
- If needed, lower the gain slightly in the second dpMeter to compensate for added energy or saturation.
- Tweak the plugin settings (drive, bias, input/output trims) until you get the desired tone.
📏 Step 7: Final Check
- Double-check levels using the second dpMeter.
- Once your signal reads close to the desired LUFS and still retains musicality — you’ve nailed the sweet spot
🎚️ Why This Works
This workflow helps you:
- Respect the intended behavior of analog emulation plugins.
- Prevent unwanted clipping or weak signal.
- Maintain consistent tone across multiple tracks and buses.
- Bring out the full sonic potential of your plugins — warmth, glue, and character.
🔌 Recommended Plugins for This Approach
- Slate Digital VTM (vintage-style console/tape)
- Waves J37, Kramer Tape
- Softube Tape, Klanghelm SDRR
- dpMeter5 (free and super accurate)
I based part of my article from this Video !!!!!
🧠 Final Thoughts
Analog emulation plugins are powerful — but only when used intentionally. By gain staging correctly, you’ll ensure every plugin in your chain is working at its best. This isn’t just a mixing trick; it’s a craftsmanship mindset that will make your mixes sound warmer, more cohesive, and truly analog.
